Tiporare By Dick Hanson
Wingspan 65" , Length 55" .61 2C engine

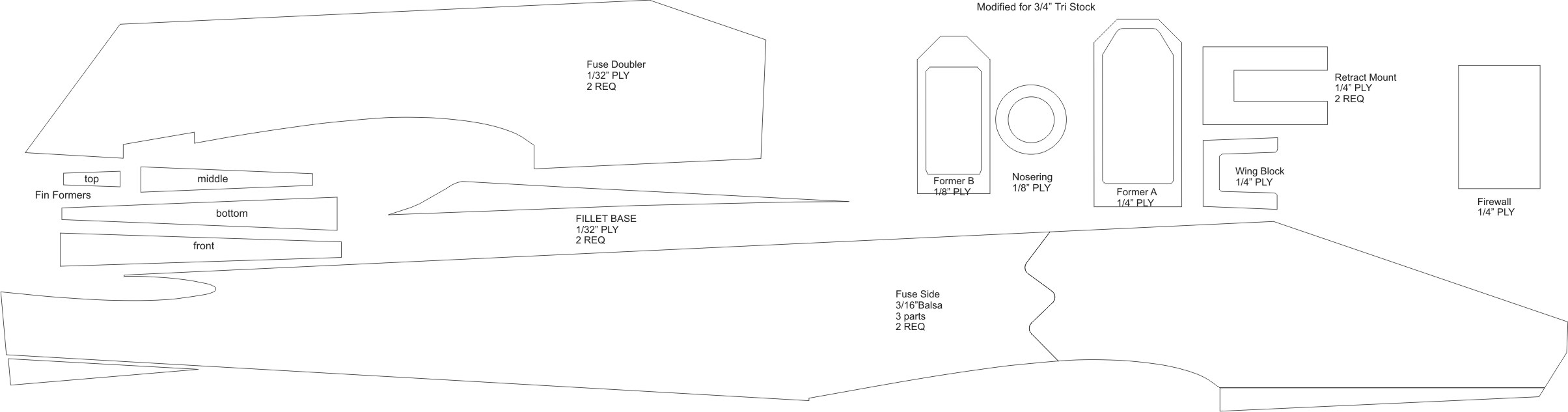

Two PDF files of the plans we be sent after order. One PDF is full size, and be printed at a local Kinkos, Copy Max, or any drafting/architect supply shop, anywhere that can print large format. The second PDF is tiled pages with 1/4" overlap which can be printed on your printer and taped together. You can also order printed plans with your Short Kit Scaled Tipo's!!! The scaled Tiporare's (thanks to Doxilia) are from the RCU thread below: http://www.rcuniverse.com/forum/m_7825947/mpage_1/key_tipo%2Cscaled/tm.htm Scaled plans can be downloaded from links in the RCU thread. The firewall & formers will be scaled and extra 10% larger for easier engine install. If you don't want these scaled up, request this in an email after you order the short kit. Nose rings will be scaled up slightly so they match the next size up readily available spinner (1/4" increments) Retract mounts are not included on scaled sizes, since they will have to be fit to the chosen retracts, if retracts are used. The smaller sizes, .10, .20, and .40 sizes, plus a 125% version (IMAA legal) , will be added shortly.
PDF of plans will be emailed upon purchase if printed plans are not ordered. |
|
