Phoenix (1)

Short Kit

By Don Lowe

Wingspan 68" , 770 Sq. In.

.61 2C engine

Plane is SPA Legal (antique)

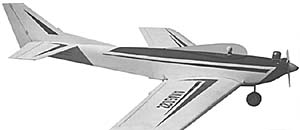

The original swept wing Phoenix, circa August, 1965, by Don Lowe. The beginning of a long line of the Phoenix pattern aircraft.

The Phoenix has a built up wing only, as per original RCM plans.

Plans are available from RCM Plans .

$78.00 + $9.00 shipping

	Phoenix short kit with Built-Up wing ribs	$87.00
	prices include Domestic US Shipping

The only change from the plans was the change of two ply parts from 3/32" PLY to 1/8" PLY. The 3" wide 3/32" balsa doublers(45 degree sheeting strips) are not included, since it is very easy to glue on and sand to fuse edge. Fuse is constructed in 3 parts to fit on 36" wood, which lowers shipping costs.

Part List:

2	Fuse Sides (3 pieces each)
1	1/8" PLY tank floor (structural part)
1	1/4" PLY Firewall - F1
1	1/8" Former - F2
8	1/16" PLY Landing Gear Doublers (4 per side)
1	3/8" Vertical Fin (2 parts)
1	3/8" Dorsal Fin
2	1/4" elevators
1	1/2" x 4" x 12" tapered Balsa (for rudder)
2	3/16" tail cradles
22	3/32" wing ribs, (11 per side)
4	1/4" balsa Stab Parts (center and 2 tips)
2	1/16" fuse doubler (for wing TE dowel)
